Shop by equipment type

Select your equipment to view compatible battery models and specifications.

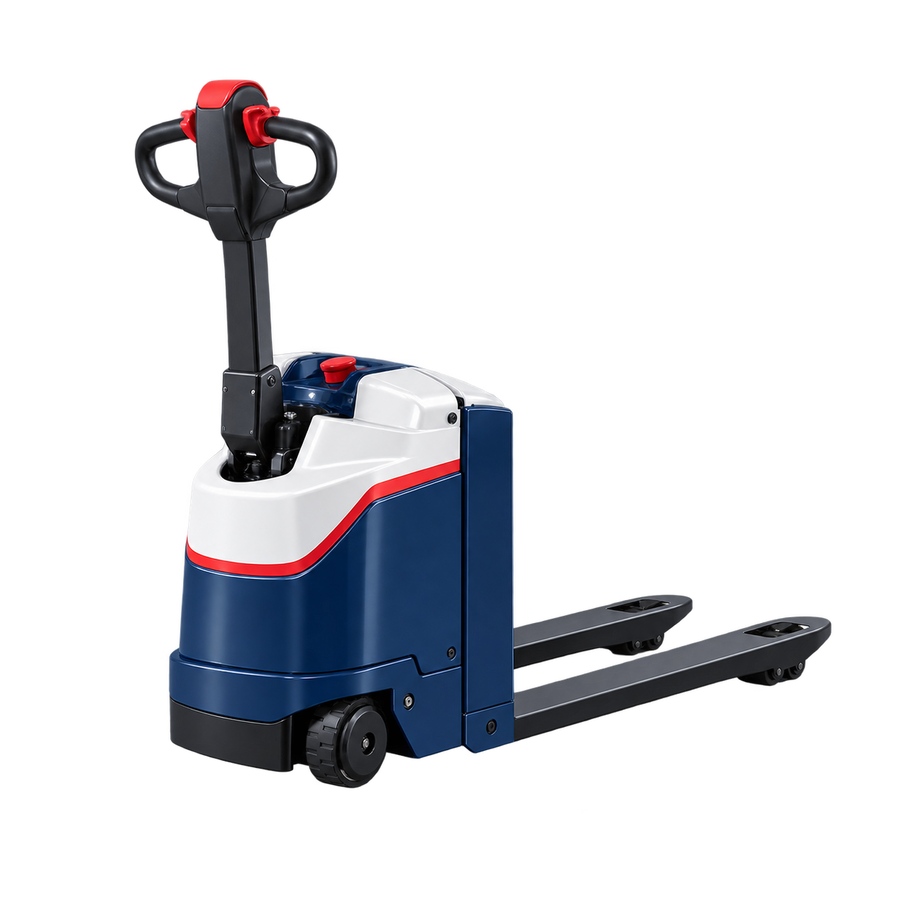

Pallet Trucks & Tuggers

Pallet Trucks & Tuggers

View battery models
Battery Model AH Cap CAP/6HR Physical Dimension L X W X H Weight LBS.
12-085-05 170 26.5 x 7.5 x 23.625 475
12-085-07 255 25.5 x 8.625 x 23.75 573
12-085-13 510 30.625 x 12.687 x 23.75 1040
12-085-15 595 35.125 x 12.812 x 22.625 1143

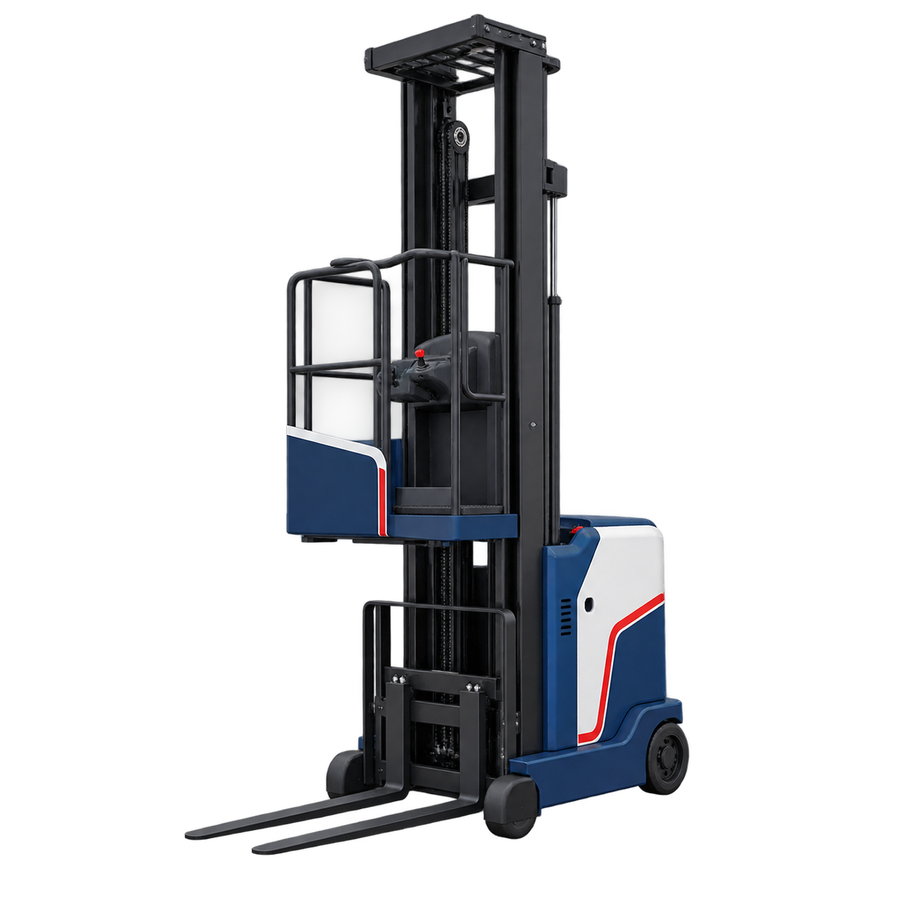

Order Pickers & Reach Trucks

Order Pickers & Reach Trucks

View battery models
Battery Model AH Cap CAP/6HR Physical Dimension L X W X H Weight LBS.
12-125-13 750 30.625 x 12.687 x 31 1450
12-125-15 875 36 x 14 x 30.25 1690
12-125-15 875 38.125 x 11.937 x 30.25 1666
12-125-15 875 35.125 x 12.937 x 30.25 1672
12-125-17 1000 38 x 13.5 x 30.25 1909
18-125-11 625 38 x 13.125 x 30.25 1840
18-125-13 750 38 x 15.375 x 30.25 2150
18-125-15 875 38.25 x 17.687 x 30.25 2515
18-125-17 1000 38.125 x 19.937 x 30.25 2815

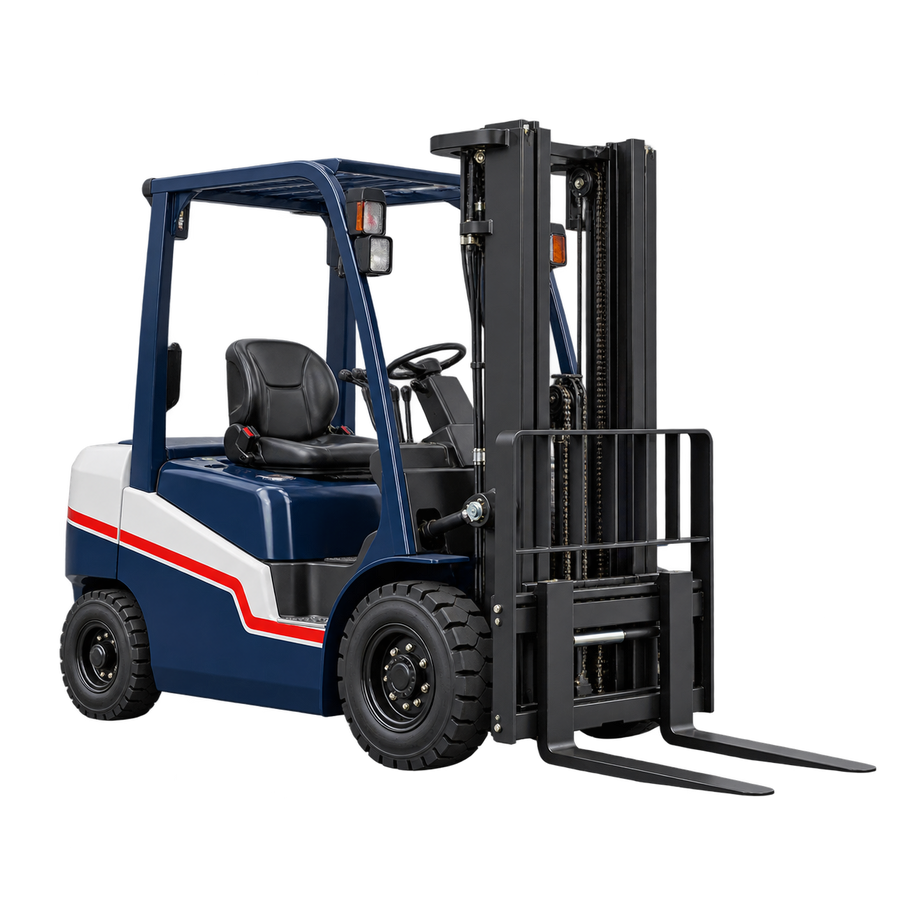

Counterbalance Forklifts

Counterbalance Forklifts

View battery models
Battery Model AH Cap CAP/6HR Physical Dimension L X W X H Weight LBS.
18-085-17 680 38.25 x 19.937 x 22.625 1985
18-085-17 680 33.25 x 25.625 x 22.625 2068
18-085-19 765 35 x 25.437 x 22.625 2310
18-085-21 850 38.25 x 24.5 x 22.625 2428
18-085-23 935 38.25 x 26.687 x 22.625 2630
18-085-25 1050 38.25 x 29 x 22.625 2835
24-085-15 595 38.21 x 24 x 22.625 2320
24-085-17 680 38.125 x 26.625 x 22.625 2652
24-085-19 765 38.25 x 29.562 x 22.625 2920
24-085-21 850 38.25 x 32.75 x 22.625 3276

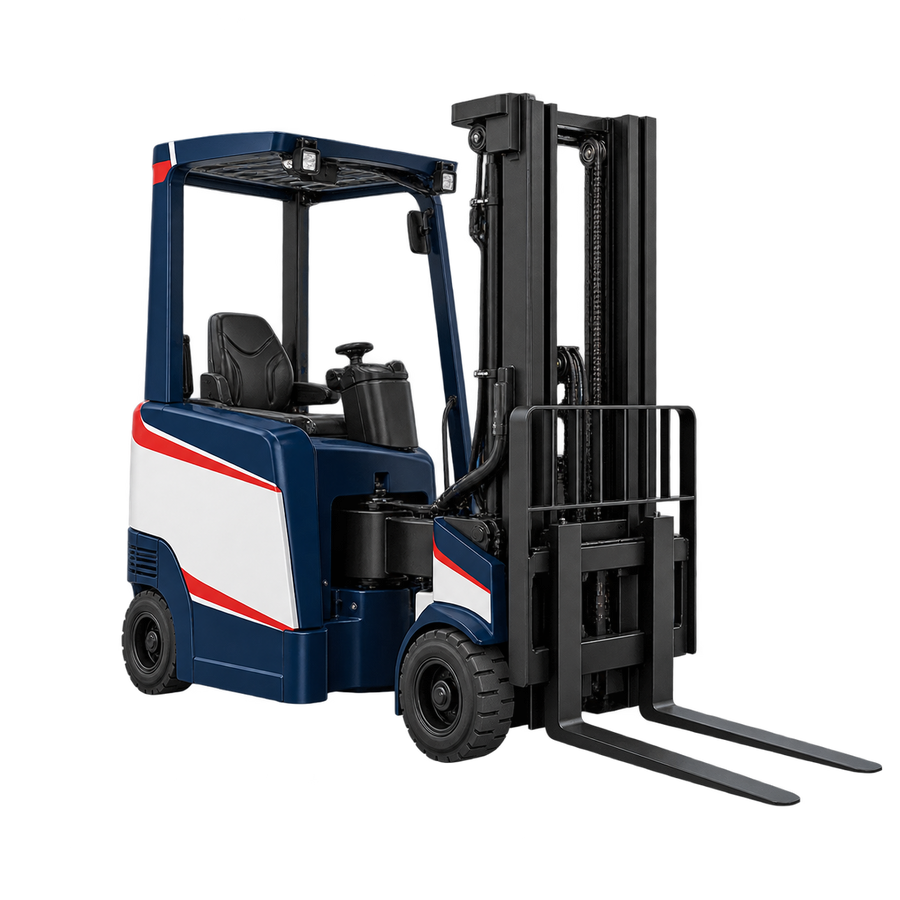

Articulated Forklifts

Articulated Forklifts

View battery models
Battery Model AH Cap CAP/6HR Physical Dimension L X W X H Compatible Equipment Type
24-125-11 625 26.5 x 24.75 x 35 FLEXI
24-125-13 750 31.5 x 25.25 x 33 FLEXI
24-125-13 750 32.375 x 26.25 x 31.50 COMBI-LIFT
24-125-15 875 30.25 x 19.94 x 32.63 COMBI-LIFT
10-125-15 875 24.44 x 19.94 x 32.63

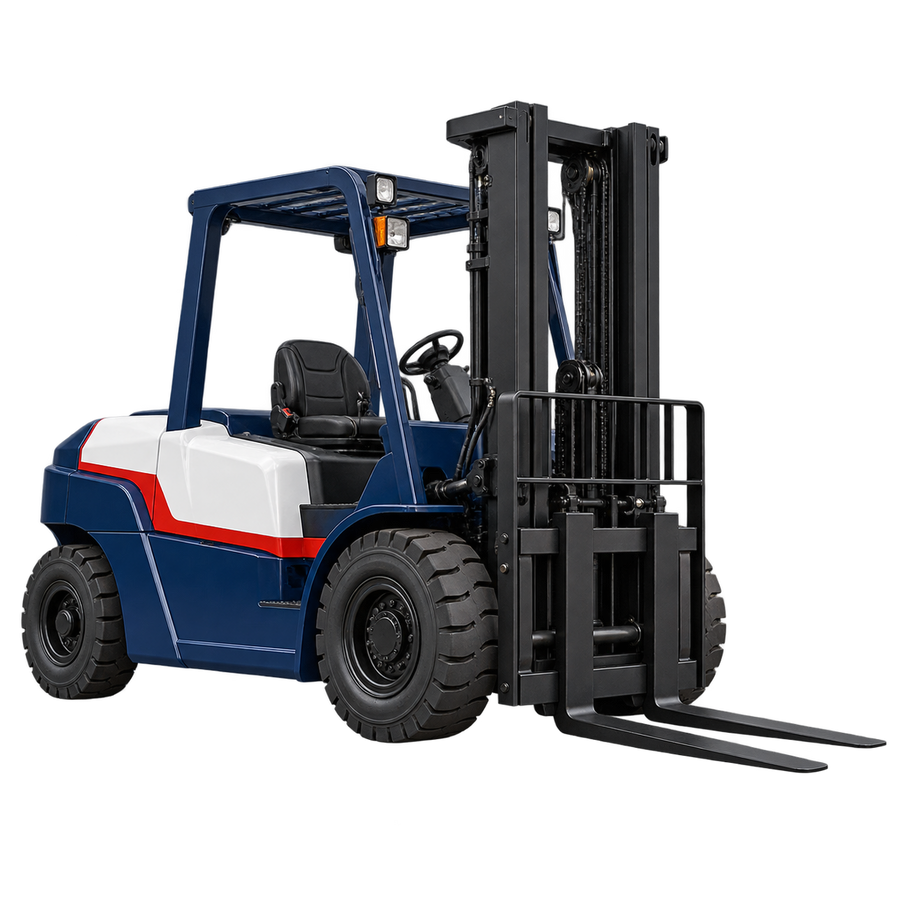

Heavy-Duty Electric Forklifts

Heavy-Duty Electric Forklifts

View battery models
Battery Model AH Cap CAP/6HR Physical Dimension L X W X H Weight LBS.
40-125-09 500 35.875 x 25.625 x 31 3420
40-125-11 625 40 x 33 x 30.25 4520
40-125-13 750 40 x 38 x 30.25 4950
40-125-13 750 40.25 x 39 x 30.5 4950
